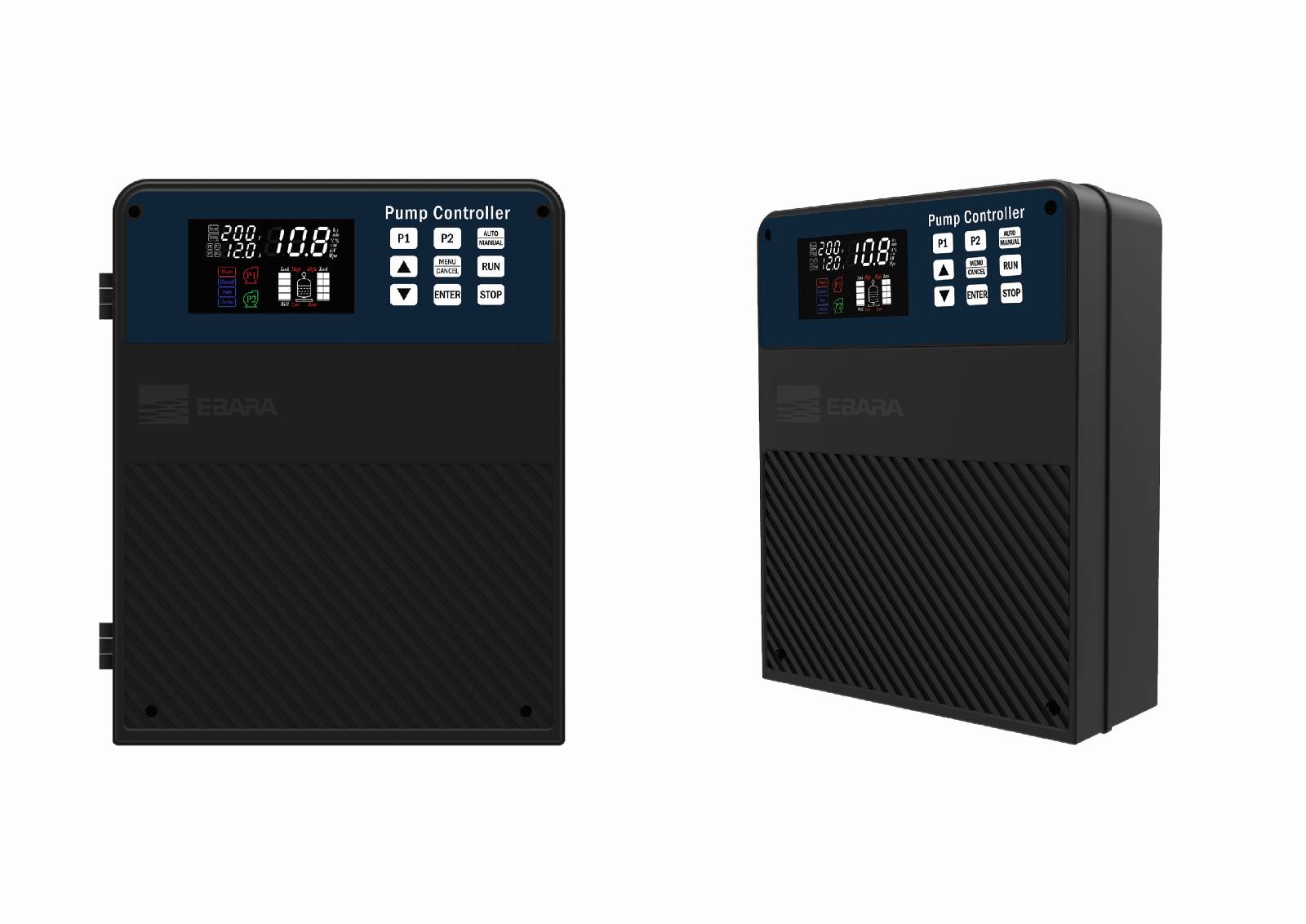

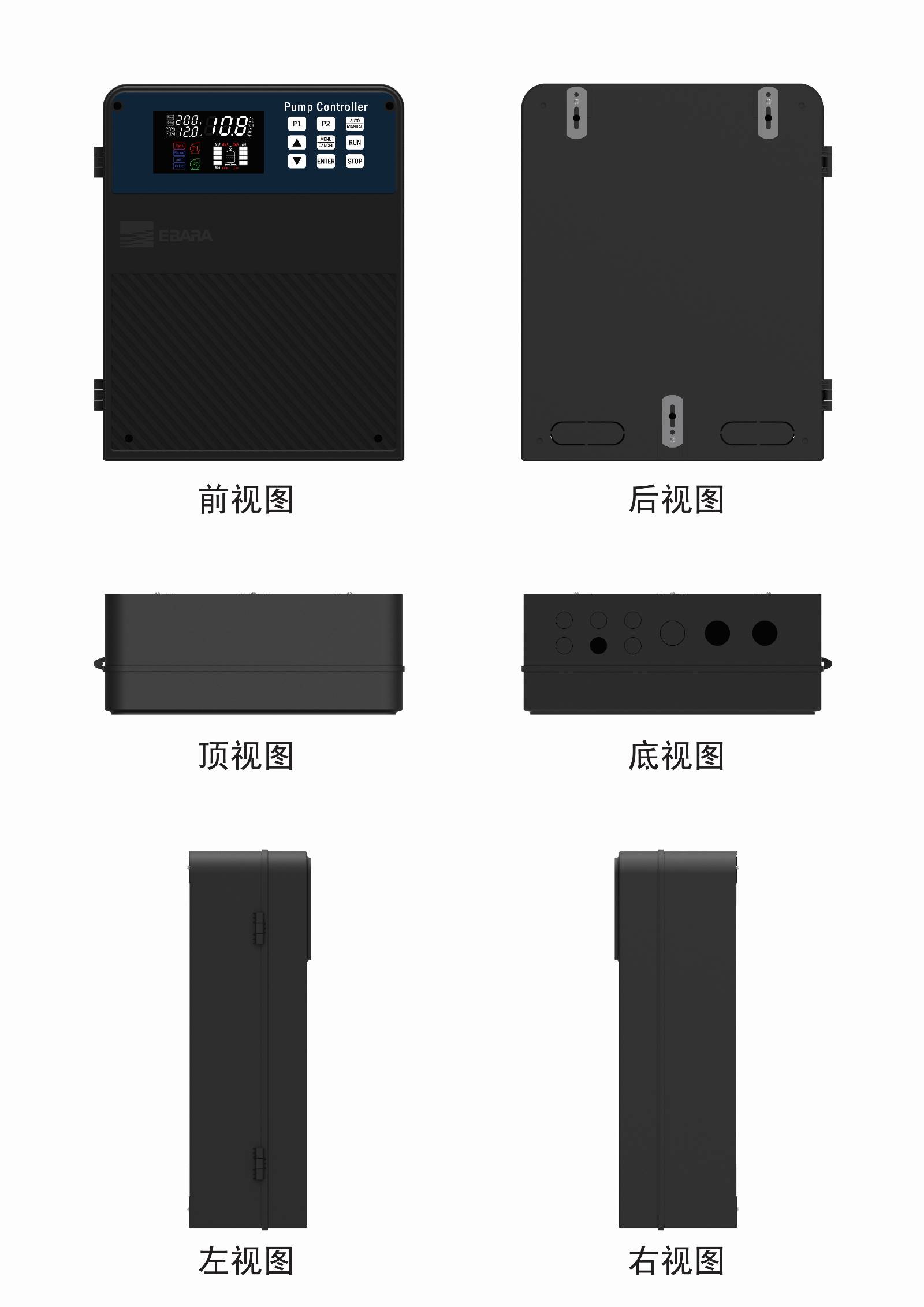

1.Exquisite design. Outer covering dimension: W299*H370*D120 (unit: mm), with 3 fastening holes, and can be fixed on the platform or on the wall.Design protection level: IP65, protect the system to run steadily. 2.Remote monitor function Online monitor by the internet of things can be realized through remote monitor data collection module. Provide remote on/off switch, pump runing, fault and other digital quantity DO signal or standard Modbus communication agreement, which is conveninet for user to monitor remotely. 3.Quick check system status During when the system is running, real-time display voltage and current value, and the present system status inormation can be gained through the status indicating light, alarm indicating light and buzzer onthe panel. 4.One-key setting function During when the pump is running normally, record the present pump current as the pump rated current through one key. Calculate the no-load current, over-load current etc., and keep them as set parameter. 5. System fault real-time monitor When the system is powered on, monitor the phase sequence; during when the system is running, monitor the pump current and the power supply voltage. Once any fault occurs, alarm right now and do the protecting action. 6. Wide application range It can be set to be water supply way or water drainage way through setting the items. The controller can directly drive pumps with power which equals and below 7.5kW. Pumps with power over 7.5kW can be controlled by expanded MCC cabinets.

It provides remote on/off switch, pump running, bug and other digital quantity DO signal or standard Modbus communication agreement, which is convenient for user to monitor remotely.

It is expected to produce over 500 sets a year with annual sales income of 2 million yuan.

Meanwhile the product has been promoted to Southeast Asian market vigorously. From the beginning of 2017, market promotion and publicity have been made in the treatment of industrial water and domestic water in Thailand.

Designer：Li Yan Co-designer: Zhong Chongqing, Yuan You, Tang Xu, Teng Haibin

1．Analyze the domestic relevant product demands and market. Make product demands manual and control specification. 2．Embedded hardware development and design of the heart control base board. 3．Controller structure and electrical design according to different application. 4．Embedded control software development and design according to different application. 5．Control system field debugging. 6．Design and produce inspecting tools. Manufacturing technique is standardized.

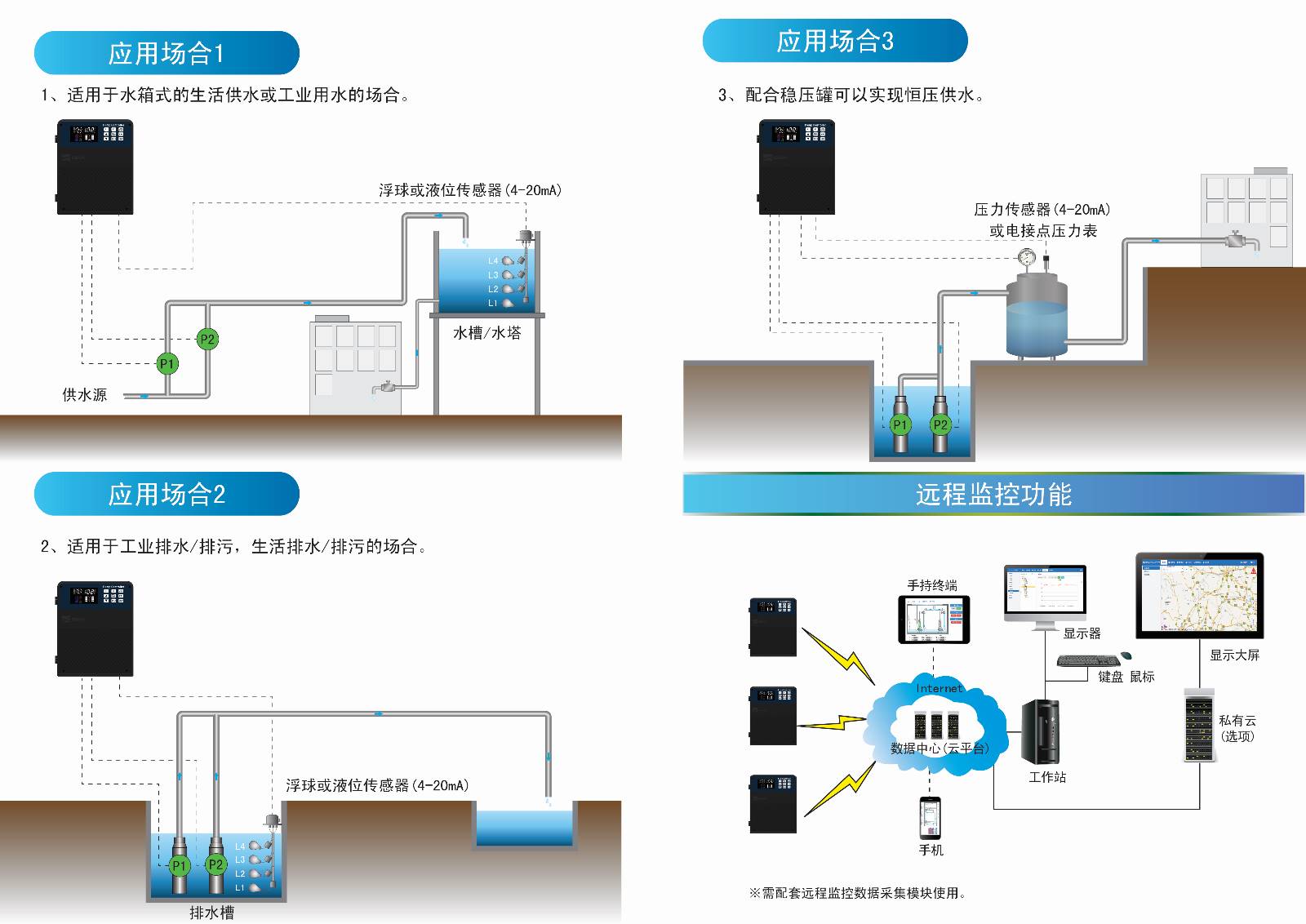

This product has been put farward into the market since Feburary in 2017. We signed a sales contract with Chang You Co., Ltd. Two controllers have been used in TaiWan successfully, and have been marketed in TaiWan industrial and life water supply and drainage ares. At the same time, this product has been strongly promoted in Southeast Asian market. Since the beginning of 2017, this product has been marketed and advertised in Thailand industrial water and life water treatment ares. Acccroding to the wide application range of the product, it can be divided into constant pressure water supply, level water supply, level water drainage and other series products. It is estimated to batch produced to over 500 sets each year and the sales of each year is initially expected to be RMB 3 million yuan.
